CNS forged steel butt welding gate valve
Technical Parameters
Product number：Z11Y/Z61Y
Nominal diameter：NPS3/8"~2"
Nominal pressure：Class150-800LB
Applicable medium: water, steam, oil, etc.
Applicable temperature: -29℃～550℃
Main material：A105、A182F22、A1 82 F304（L）、A182 F316（L）
Standard：API 602、BS5352、ANSI B16.34
Test and Acceptance：API 598
Identification standard：MSS SP-25
Product description
The forged steel internal thread and socket welding gate valve has small fluid resistance and requires small torque for opening and closing. It can be used on the ring network pipeline where the medium flows in two directions, that is to say, the flow direction of the medium is not restricted. When fully open, the sealing surface is less eroded by the working medium than the globe valve. The body structure is relatively simple, the manufacturing process is good, and the structure length is relatively short. It is suitable for industrial pipelines in steel plants, petroleum, chemical industry, gas, boilers, papermaking, textiles, food, ships, water supply and drainage, energy, polysilicon, electric power and other industries.
Structure type
1. Full diameter or reduced diameter;
2. Open rod with bracket;
3. Packing sleeve with automatic alignment at both ends;
4. Use the bolted type bonnet of the winding gasket, the threaded sealing welded bonnet, or the self-sealing bonnet;
5. The body is sealed inverted;
6. Socket welding ANSI/ASME B16.11;
7. The threaded end (NPT end) is according to ANSI/ASME B1.20.1.
Material of main parts
|
Serial number |
Part name |
CStoASTM |
AStoASTM |
SStoASTM |
|
|
A105 |
F22 |
F304L |
F316L |
||
|
1 |
Body |
A105 |
A182 F22 |
A182F 304L |
A182 F316L |
|
2 |
Seat |
A276 420 |
A276 304 |
A276 304L |
A276 316L |
|
3 |
Gate |
A182F 430&410 |
A182 F304 |
A182F 304L |
A182 F316L |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182F 304L |
A182 F316L |
|
5 |
Gasket |
316 clamp flexible graphite |
316 clamp PTFE |
||
|
6 |
Cap |
A105 |
A276 F304 |
A276F 304L |
A276 F316L |
|
7 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
8 |
Pin |
A276420 |
A276 304 |
||
|
9 |
Packing sleeve |
A276410 |
A182F 304L |
A182F F316L |
|
|
10 |
Swing bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Packing plate |
A105 |
A182 F11 |
A182F 304L |
A182F 316L |
|
12 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Stem nut |
A276 420 |
|||
|
14 |
Fasten the screw nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Nameplate |
SS |
|||
|
16 |
Hand wheel |
A197 |
|||
|
17 |
Gasket |
A473431 |
|
||
|
18 |
Packing |
Flexible graphite |
PTFE |
||
|
Applicable medium |
Water, steam, oil, etc. |
Water, steam, oil, etc |
Nitric acid, acetic acid, etc. |
||
|
Proper temperature |
-29℃～425℃ |
-29℃～550℃ |
-29℃～200℃ |
||

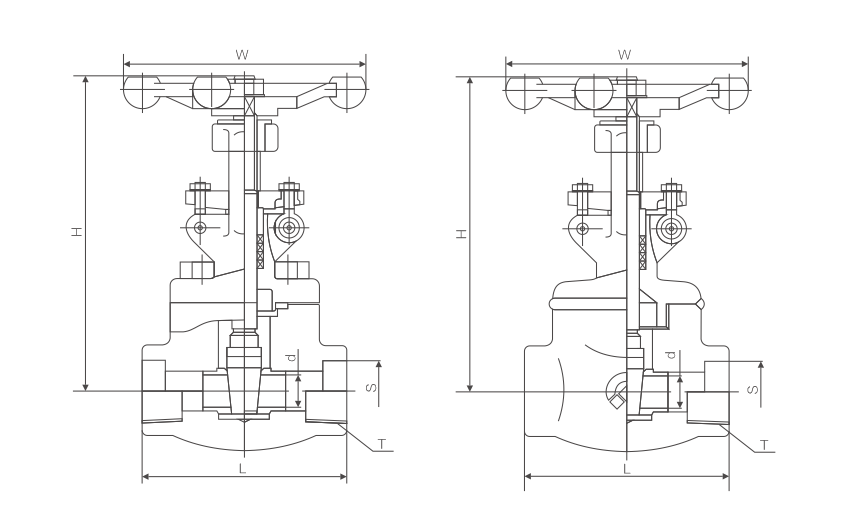

Main connection size and weight
|
NPS |
Reduced diameter |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
Full diameter |
|
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
|
|
H |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
|
|
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
|
|
Weight |
Bolt type |
2.1 |
2.0 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
|
Welded |
1.8 |
1.7 |
2.0 |
3.8 |
5.1 |
6.1 |
10.2 |
14.2 |
|
