Two-piece ball valve
Technical Parameters
Product Specifications：NPS 1/4"~4"（DN 6〜100）
Nominal pressure：PN 1.0/1.6MPa
Applicable medium：Water, air, oil, acids
Applicable temperature：-20~120℃
Thread standard：BSPT/BSP/NPT/DIN/JIS/RC/G
Design and Manufacture：GB T-12224/ANSI B16.34
Test & check：GB T-13927/API598

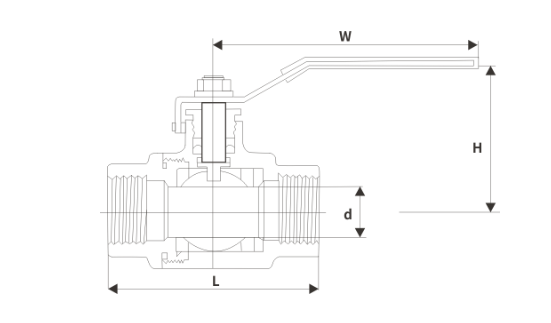

Main connection dimensions
|
NPS |
DN |
d |
L |
H |
W |
|
1/4" |
6 |
10 |
53 |
42 |
95 |
|
3/8" |
10 |
12 |
55 |
42 |
95 |
|
1/2" |
15 |
15 |
56 |
51 |
108 |
|
3/4" |
20 |
20 |
61 |
58 |
115 |
|
1" |
25 |
25 |
71 |
77 |
135 |
|
11/4" |
32 |
32 |
83 |
83 |
150 |
|
11/2" |
40 |
38 |
94 |
97 |
175 |
|
2" |
50 |
50 |
106 |
106 |
190 |
|
21/2" |
65 |
65 |
139 |
122 |
220 |
|
3" |
80 |
80 |
165 |
133 |
250 |
|
4" |
100 |
100 |
208 |
162 |
320 |
