One piece ball valve
Technical Parameters
Product Specifications：NPS 1/4"~4"（DN 6~100）
Nominal pressure：PN 0.6/0.8MPa
Applicable medium：Water, air, oil, acids
Applicable temperature：-40~180℃
Thread standard：BSPT、BSP、NPT、DIN2999

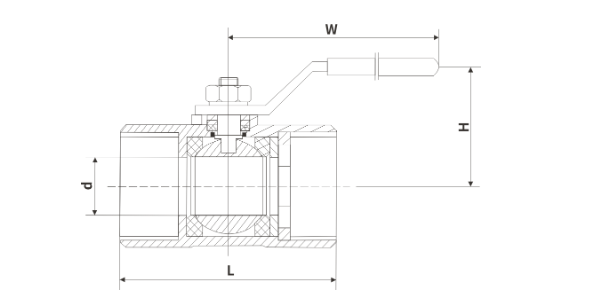

Main connection dimensions
|
NPS |
DN |
d |
L |
H |
W |
|
1/4" |
6 |
5 |
40 |
22 |
80 |
|
3/8" |
10 |
7 |
44 |
26 |
80 |
|
1/2" |
15 |
9 |
51 |
31 |
88 |
| 3/4" |
20 |
12 |
55 |
34 |
88 |
|
1" |
25 |
15 |
67 |
38 |
105 |
|
11/4" |
32 |
20 |
70 |
43 |
105 |
| 11/2" |
40 |
25 |
80 |
50 |
124 |
|
2" |
50 |
32 |
93 |
57 |
124 |
| 21/2" |
65 |
38 |
112 |
89 |
180 |
|
3" |
80 |
50 |
133 |
102 |
190 |
|
4" |
100 |
65 |
190 |
120 |
215 |
