Electric blind valve
Technical Parameters
Product model: F943X
Nominal diameter: DN300~2000mm
Nominal pressure: PN0.05~0.25MPa
Applicable temperature: ≤300℃
Applicable medium: gas and toxic, harmful and flammable gases
Main material: carbon steel, stainless steel, silicone rubber
Drive mode: electric
Design standard: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature class: ASME B16.34, GB/T 12224
Features
Electric fan-shaped blind valve is mainly composed of left valve body, right valve body, fan-shaped gate, stainless steel bellows, electric drive device, electric clamping device and other parts. The valve body adopts a three-point locking sector gate structure. The sealing part adopts stainless steel and rubber sealing ring, which has good sealing performance and long service life. Electric operation, stable work, flexible start and reliable action. The clamping mechanism adopts screw nut for clamping, with good self-locking. The electric fan-shaped glasses valve is equipped with stainless steel bellows, which has the characteristics of strong scalability and long service life.
Main performance parameters
| Nominal pressure MPa | 0.25 | 0.15 | 0.10 | 0.05 |
| Sealing test pressure MPa | 0.275 | 0.165 | 0.11 | 0.054 |
| Strength test pressure MPa | 0.375 | 0.225 | 0.15 | 0.075 |
| Drive source | Compressed air 0.4-0.6MPa, hydraulic pressure 6.3MPa, 3-phase 380V 50Hz | |||
| Applicable temperature ℃ | Nitrile rubber | Silicone Rubber | Fluororubber | |
| -20-100 | -20-200 | -20-300 | ||
| Applicable media | Gas, other combustible gases | |||
| Opening and closing time S | ≤50 | |||
| Material of main parts | The valve body and gate are carbon steel; the valve stem is stainless steel; the sealing ring is silicone rubber | |||

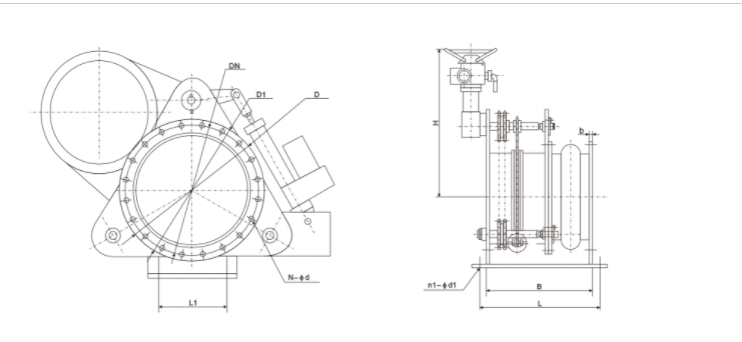

Main external dimensions
| DN | D | D1 | b | N-Φd | B | L | L1 | H | n1-Φd1 |
| 200 | 320 | 280 | 22 | 8-Φ18 | 500 | 580 | 110 | 350 | 4-Φ12 |
| 250 | 375 | 335 | 24 | 12-Φ18 | 500 | 580 | 150 | 400 | 4-Φ12 |
| 300 | 440 | 395 | 24 | 12-Φ22 | 500 | 580 | 150 | 450 | 4-Φ12 |
| 350 | 490 | 445 | 24 | 12-Φ22 | 600 | 580 | 200 | 480 | 4-Φ15 |
| 400 | 540 | 495 | 24 | 16-Φ22 | 600 | 680 | 200 | 500 | 4-Φ15 |
| 450 | 595 | 550 | 26 | 16-Φ22 | 600 | 680 | 250 | 530 | 4-Φ15 |
| 500 | 645 | 600 | 26 | 20-Φ22 | 600 | 680 | 300 | 580 | 4-Φ15 |
| 600 | 755 | 705 | 26 | 20-Φ26 | 600 | 680 | 300 | 630 | 4-Φ15 |
| 700 | 860 | 810 | 26 | 24-Φ26 | 600 | 680 | 350 | 680 | 4-Φ18 |
| 800 | 975 | 920 | 26 | 24-Φ30 | 800 | 680 | 400 | 730 | 4-Φ18 |
| 900 | 1075 | 1020 | 26 | 24-Φ30 | 800 | 710 | 400 | 780 | 4-Φ18 |
| 1000 | 1175 | 1120 | 26 | 28-Φ30 | 800 | 710 | 500 | 830 | 4-Φ20 |
| 1100 | 1275 | 1220 | 26 | 28-Φ30 | 800 | 710 | 500 | 880 | 4-Φ20 |
| 1200 | 1375 | 1320 | 26 | 32-Φ30 | 800 | 830 | 600 | 940 | 6-Φ20 |
| 1300 | 1475 | 1420 | 26 | 32-Φ30 | 800 | 830 | 600 | 990 | 6-Φ20 |
| 1400 | 1575 | 1520 | 26 | 36-Φ30 | 850 | 830 | 700 | 1040 | 6-Φ20 |
| 1500 | 1675 | 1620 | 26 | 36-Φ30 | 850 | 830 | 750 | 1090 | 6-Φ22 |
| 1600 | 1790 | 1730 | 26 | 40-Φ30 | 850 | 830 | 800 | 1140 | 6-Φ22 |
