Brass globe valve
Technical Parameters
Product model: J11F-16T
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid, saturated steam (≤0.6MPa)
Working temperature: -20℃≤t≤150℃
Pipe thread standard: in line with ISO228 standard

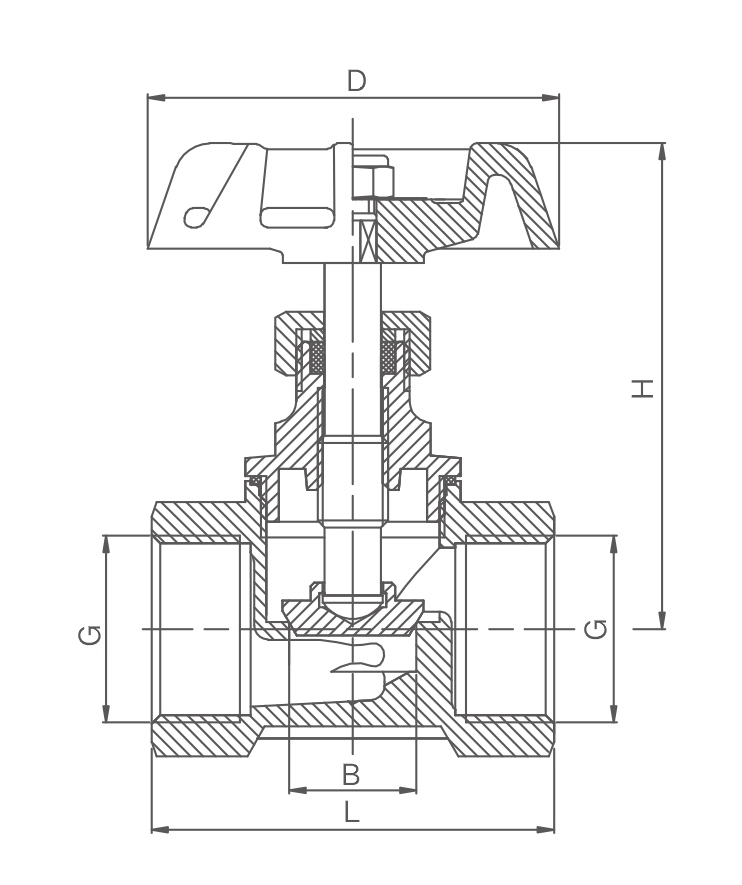

Main external connection size
|
DN(mm) |
NPS(in) |
L |
B |
H |
D |
G |
|
15 |
1/2 |
45 |
12.5 |
65-68.5 |
53 |
1/2 |
|
20 |
3/4 |
51 |
16 |
71-76 |
60 |
3/4 |
|
25 |
1 |
64.5 |
22 |
82-90 |
72 |
1 |
|
32 |
1-1/4 |
75 |
26 |
95.4-106.5 |
80 |
1-1/4 |
|
40 |
1-1/2 |
100 |
41 |
122.5-136 |
110 |
2 |
