Technical Parameters

Nominal diameter: DN15～DN40

Nominal pressure: PN1.0-1.6MPa

Connection method: internal thread

Applicable temperature: -20ºC～+100ºC

Function: balance flow

Drive mode: manual

Body Material: Brass

Applicable medium: water, oil, liquid, etc.

Product Description

SP15F Brass Balance Valve is a regulating valve with special function of digital locking. It adopts DC valve body structure and has better equal percentage flow characteristics. It can distribute flow reasonably and effectively solve the problem of heating (air conditioning) system. There is a problem of uneven heating and cooling at room temperature. At the same time, it can accurately adjust the pressure drop and flow to improve the liquid flow state in the pipe network system to achieve the purpose of liquid balance in the pipe network and energy saving.

Product Features

1. The valve is equipped with opening degree indication, opening degree locking device and small pressure measuring valve for flow measurement;

2. Overcome the unreasonable phenomenon of "large flow, small temperature difference";

3. It can be installed on both the water supply pipe and the return pipe;

4. The water supply (return) water pipe installed with the balance valve does not need to set up a stop valve;

5. Display the number of open turns accurate to 1/10 turn;

6. PTFE sealing, reliable sealing performance and long service life;

7. The internal components are made of stainless steel and copper alloy, with strong anti-corrosion performance.

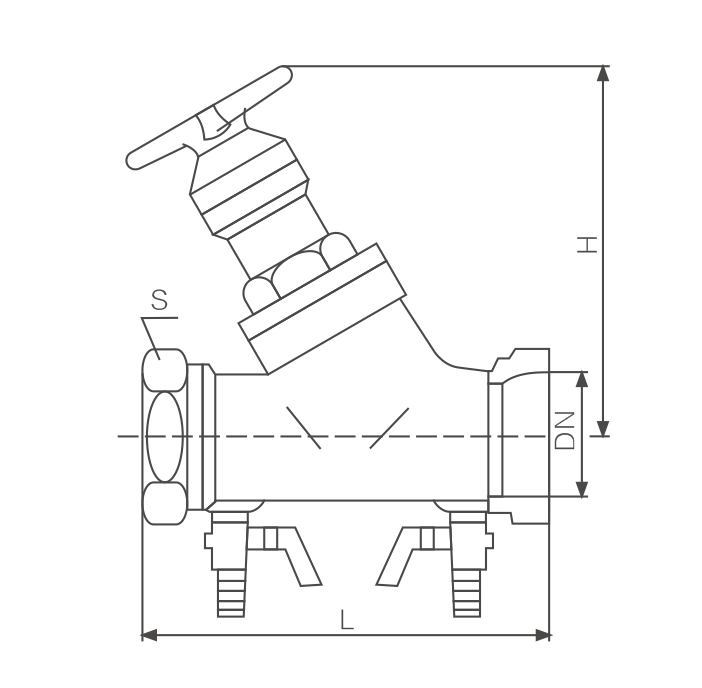

Main External Connection Dimensions
