Copper check valve
Technical Parameters
Product model: H14W-16T
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid
Working temperature: -10℃≤t≤100℃
Pipe thread standard: in line with ISO228 standard

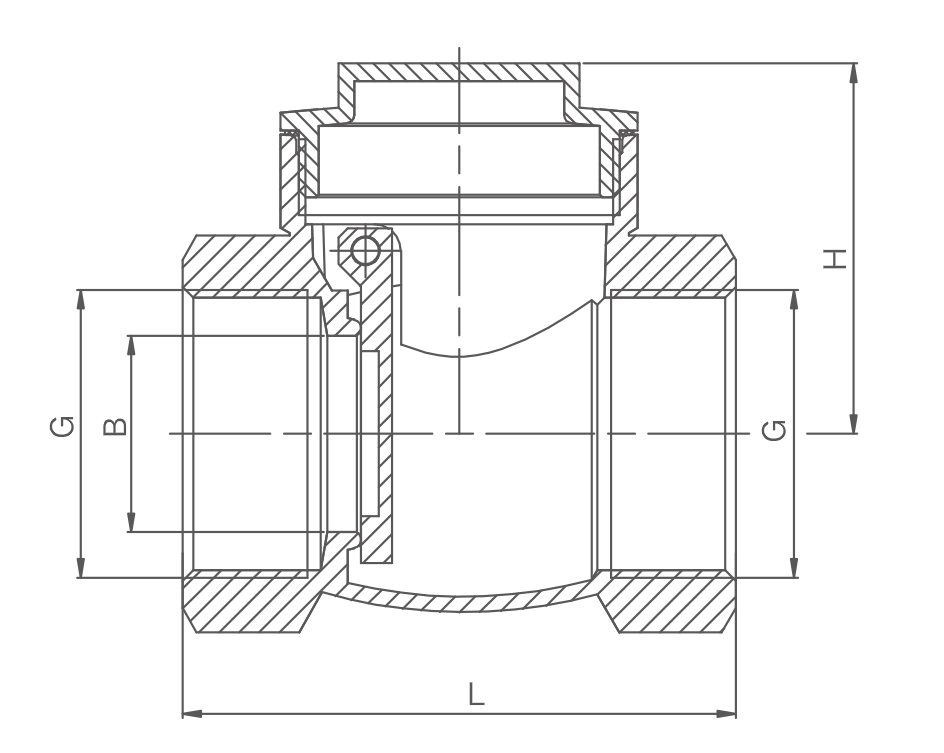

Main external connection size
|
DN(mm) |
NPS(in) |
L |
B |
H |
G |
SW |
|
15 |
1/2 |
48 |
13 |
34 |
1/2 |
26 |
|
20 |
3/4 |
58 |
18 |
40.5 |
3/4 |
32 |
|
25 |
1 |
65 |
21 |
46 |
1 |
40 |
|
32 |
1-1/4 |
71 |
28 |
51.5 |
1-1/4 |
48 |
|
40 |
1-1/2 |
83 |
32 |
57.5 |
1-1/2 |
54 |
|
50 |
2 |
95 |
41 |
68.5 |
2 |
66.5 |
|
65 |
2-1/2 |
102 |
54 |
85.5 |
2-1/2 |
83 |
|
80 |
3 |
147 |
75 |
95.5 |
3 |
96 |
|
100 |
4 |
162 |
85 |
110 |
4 |
123 |
