Insulation globe valve

● Reliable Quality

● Reasonable Price

● Fast Delivery

Service Hotline: +86-21-33758111

Product Details

Technical Parameters

Product model:BJ41W/H
Nominal diameter:DN15~250mm
Nominal pressure:PN1.6~6.4MPa
Applicable temperature: nitric acid
Main materials: cast steel, stainless steel

Overview

The insulation jacket of the jacketed insulation shut-off valve is welded between the two flanges of the valve, and two connection ports of the insulation jacket are set on the side and bottom of the valve. The inclusion of steam in the jacket can prevent medium crystallization. Widely used in various systems such as petroleum, chemical, metallurgical, pharmaceutical, etc., to transport high viscosity media that will solidify at room temperature.

Product Features

1、Simple structure, convenient manufacturing and maintenance;

2、Small working stroke and short opening and closing time;

3、Good sealing performance, low friction between sealing surfaces, and long service life;

4、Suitable for media with high viscosity and easy coking.

Product size

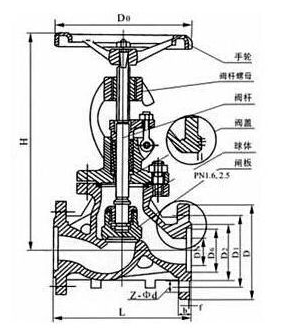

Main overall dimensions

Model	Nominal Diameter DN	Size
Model	Nominal Diameter DN	L	D	D1	D2	B-f	Z-φ	H	D0
BJ41W/H-16P/R/C	15	130	95	65	45	16-2	4-14	170	120
	20	150	105	75	55	16-2	4-14	190	140
	25	160	115	85	65	16-2	4-14	205	160
	32	180	135	100	78	18-2	4-18	270	180
	40	200	145	110	85	18-3	4-18	310	200
	50	230	160	125	100	18-3	4-18	358	240
	65	290	180	145	120	18-3	4-18	373	280
	80	310	195	160	135	20-3	8-18	435	320
	100	350	215	180	155	20-3	8-18	500	360
	125	400	245	210	185	22-3	8-18	614	400
	150	480	280	240	210	24-3	8-23	674	400
	200	600	335	295	265	26-3	12-23	818	450
	250	730	405	355	320	30-3	12-25	969	550

Model	Nominal Diameter DN	size
Model	Nominal Diameter DN	L	D	D1	D2	B-f	Z-φ	H	D0
BJ41WH-25PRC	15	130	95	65	45	16-2	4-14	233	120
	20	150	105	75	55	16-2	4-14	275	140
	25	160	115	85	65	16-2	4-14	285	160
	32	180	135	100	78	18-2	4-18	302	180
	40	200	145	110	85	18-3	4-18	355	200
	50	230	160	125	100	20-3	4-18	362	240
	65	290	180	145	120	22-3	8-18	400	280
	80	310	195	160	135	22-3	8-18	430	320
	100	350	230	190	160	24-3	8-23	465	360
	125	400	270	220	188	28-3	8-25	550	400
	150	480	300	250	218	30-3	8-25	700	400
	200	600	360	310	278	343	12-25	780	450
	250	730	425	370	335	36-3	12-30	900	550

Model	Nominal Diameter DN	Size
Model	Nominal Diameter DN	L	D	D1	D2	B-f	Z-φ	H
BJ41WH-40PRC	15	130	95	65	45	16-2	4-14	233
	20	150	105	75	55	16-2	4-14	275
	25	160	115	85	65	16-2	4-14	285
	32	180	135	100	78	18-2	4-18	302
	40	200	145	110	85	18-3	4-18	355
	50	230	160	125	100	20-3	4-18	370
	65	290	180	145	120	22-3	8-18	408
	80	310	195	160	135	22-3	8-18	436
	100	350	230	190	160	24-3	8-23	475
	125	400	270	220	188	28-3	8-25	558
	150	480	300	250	218	30-3	8-25	720
	200	600	375	320	282	38-3	12-30	800
BJ41WH-64PRC	15	170	105	75	55	18-2	4-14	240
	20	190	125	90	68	20-2	4-18	280
	25	210	135	100	78	22-2	4-18	290
	32	230	150	110	82	24-2	4-23	325
	40	260	165	125	95	24-3	4-23	360
	50	300	175	135	105	26-3	4-23	410
	65	340	200	160	130	28-3	8-23	430
	80	380	210	170	140	30-3	8-23	465
	100	430	250	200	168	32-3	8-25	537
	125	500	295	240	202	36-3	8-30	630
	150	550	340	280	240	38-3	8-34	790
	200	650	405	345	300	44-3	12-34	910
