Y-type filter
Service Hotline: +86-21-33758111
Product Details
Technical Parameters
Product model: GL41H
Nominal diameter: DN50～400mm
Nominal pressure: PN1.0~2.5MPa
Working temperature: 0~200℃
Structure length standard: DIN3202-F1
Flange standard: DIN2531-2545
Product overview
The Y-type flange filter has the characteristics of advanced structure, small resistance, short sewage discharge time, high efficiency, convenient installation and maintenance, and low cost. Applicable media are water, steam and oil, which can meet the needs of different pipelines.
Main performance parameters
| Model | PN | Working pressure (Mpa) | Applicable temperature (℃) | Applicable media |
| GL41H-10 | 10 | 1.0 | ≤ 120 | Water, steam, oil |
| GL41H-16 | 16 | 1.6 | ≤ 200 | Water, steam, oil |
| GL41H-16Q | 16 | 1.6 | ≤ 220 | Water, steam, oil |
Material of main parts
| Model | Material | |||
| Body, Bonnet | Packing | Screw plug | Gasket | |
| GL41H-10 | Grey cast iron | Stainless steel | Malleable cast iron | Rubber asbestos board |
| GL41H-16 | Grey cast iron | Stainless steel | Malleable cast iron | Rubber asbestos board |
| GL41H-16Q | Ductile Iron | Stainless steel | Malleable cast iron | Rubber asbestos board |

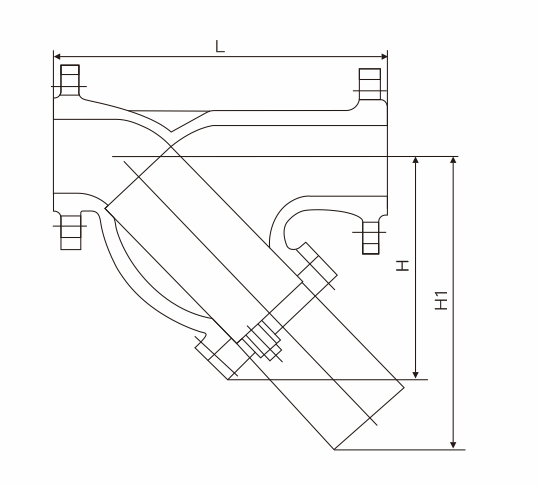

Main external connection dimensions
| DN（mm） | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 220 | 250 | 300 | 320 | 350 | 410 | 500 | 550 |
| H | 198 | 210 | 250 | 305 | 358 | 450 | 503 | 578 |
| H1 | 270 | 295 | 344 | 422 | 485 | 602 | 710 | 815 |
