Rubber soft joint

● Reliable Quality

● Reasonable Price

● Fast Delivery

Service Hotline: +86-21-33758111

Product Details

Technical Parameters

Product model: KXT-16

Nominal diameter: DN32~ 3000mm

Nominal pressure: PN1.0~2.5MPa

Applicable temperature: -15~+115°C (up to -30 ~ +250°C in special cases)

Applicable medium: air, compressed air, water, sea water, hot water, oil, acid, etc.

Main material: rubber

Product description

The flexible single-ball rubber joint is a kind of rubber connector, which is composed of an inner rubber layer, a rubber sphere reinforced by a nylon cord fabric, an outer rubber layer and a loose metal flange. It has the characteristics of high pressure resistance, good elasticity, large displacement, balanced pipeline deviation, vibration absorption, good noise reduction effect, and convenient installation. It is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, and electric power.

Features

1. Rubber joints can greatly reduce the vibration and noise of the piping system, and can fundamentally solve the problems of interface displacement, axial expansion and contraction, and misalignment of various pipelines.

2. According to different materials, rubber joints can be made into various varieties such as acid resistance, alkali resistance, corrosion resistance, oil resistance, heat resistance, etc., to adapt to a variety of media and environments.

3. The rubber joint material is polar rubber, with good sealing performance, light weight, convenient installation and maintenance, and long service life, but avoid contact with sharp metal instruments to avoid puncturing the sphere.

4. If the rubber joint is used overhead, it can be equipped with an elastic bracket, and the bolts should be tightened diagonally during installation.

5. If the pressure of the rubber joint pipeline is too high, use limit bolts to connect the flanges at both ends.

Material of main parts

Project	Model	KXT-1	KXT-2	KXT-3
Work pressureMPa(kgf/cm²)		1.0（10）	1.6（16）	2.5（25）
Burst pressureMPa(kgf/cm²)		2.0（20）	3.0（30）	4.5（45）
VacuumKPa(mm/Hg)		53.3（400）	86.7（650）	100（750）
Applicable temperature ℃		-15～+115，Special reachable-30～+250
Applicable medium		Air, compressed air, water, sea water, hot water, oil, acid, alkali, etc.

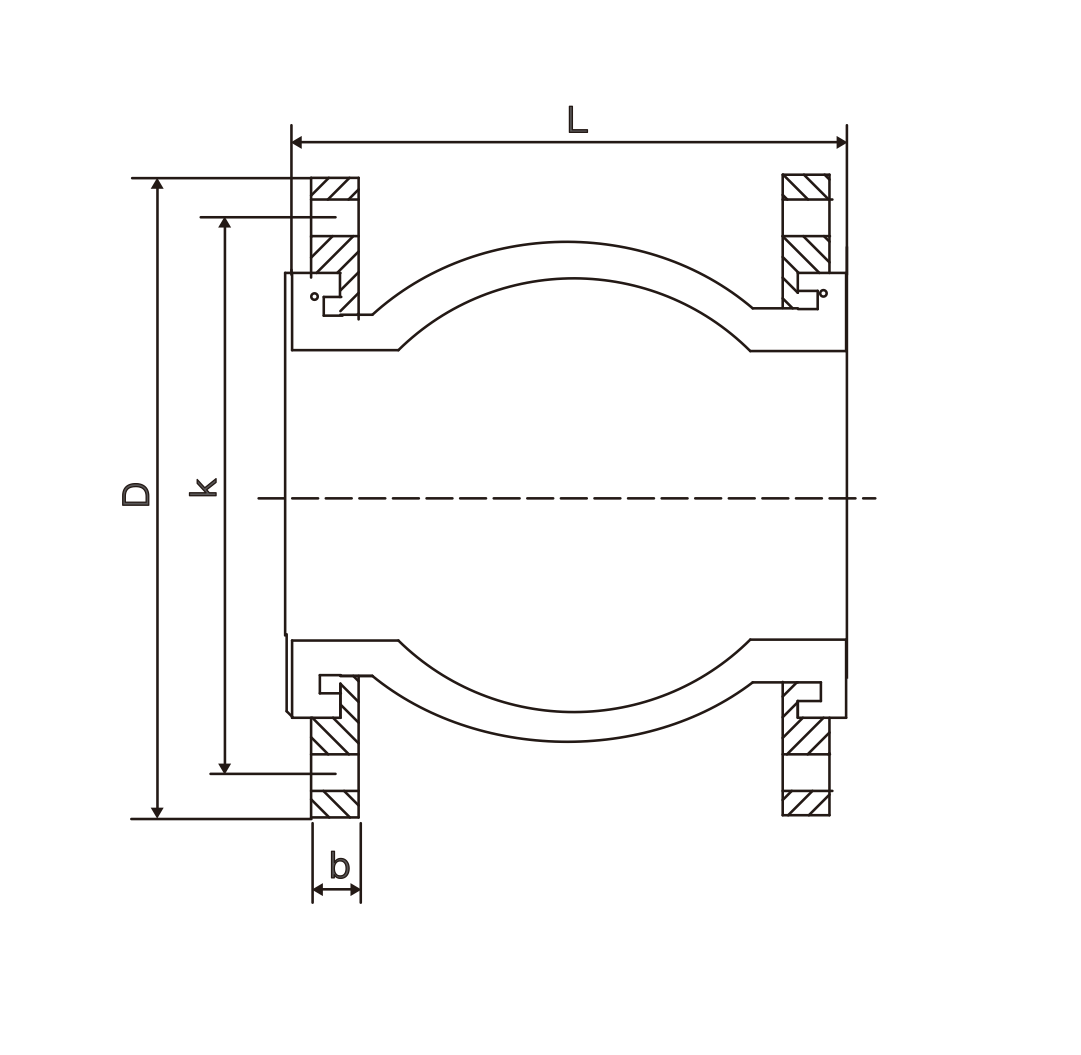

可曲挠单球橡胶软接头(图1)

Main dimensions

Nominal diameterDN		length L mm	Flange thickness b mm	Number of boltsn	Bolt hole diameter mm	Center circle diameter of bolt holeK mm	Axial displacementmm		Lateral displacementmm	Deflection angle（a1+a2）
mm	inch	length L mm	Flange thickness b mm	Number of boltsn	Bolt hole diameter mm	Center circle diameter of bolt holeK mm	Elongation	Compression	Lateral displacementmm	Deflection angle（a1+a2）
32	1.25	95	16	4	18	100	6	9	9	15°
40	1.5	95	18	4	18	110	6	10	9	15°
50	2	105	18	4	18	125	7	10	10	15°
65	2.5	115	20	4	18	145	7	13	11	15°
80	3	135	20	4	18	160	8	15	12	15°
100	4	150	22	8	18	180	10	19	13	15°
125	5	165	24	8	18	210	12	19	13	15°
150	6	180	24	8	23	240	12	20	14	15°
200	8	210	24	8	23	295	16	25	22	15°
250	10	230	26	12	23	350	16	25	22	15°
300	12	245	28	12	23	400	16	25	22	15°
350	14	255	28	16	23	460	16	25	22	15°
400	16	255	30	16	25	515	16	25	22	15°
450	18	255	30	20	25	565	16	25	22	15°
500	20	255	32	20	25	620	16	25	22	15°
600	24	260	36	20	30	725	16	25	22	15°
700	28	260	36	24	30	840	16	25	22	15°
800	32	260	38	24	34	950	16	25	22	15°
900	36	260	42	28	34	1050	16	25	22	15°
1000	40	260	44	28	34	1160	18	26	24	15°
1200	48	260	48	32	41	1380	18	26	24	15°
1400	56	350	44	36	34	1560	20	28	26	15°
1600	64	350	46	40	34	1760	25	35	30	10°
1800	72	350	52	44	41	1970	25	35	30	10°
2000	80	420	54	48	48	2180	25	35	30	10°
2200	88	420	60	52	-	2390	25	35	30	10°
2400	96	420	62	56	-	2600	25	35	30	10°
2600	104	450	64	60	-	2810	25	35	30	10°
2800	112	450	68	64	-	3020	25	35	30	10°
3000	120	500	70	68	-	3220	25	35	30	10°
